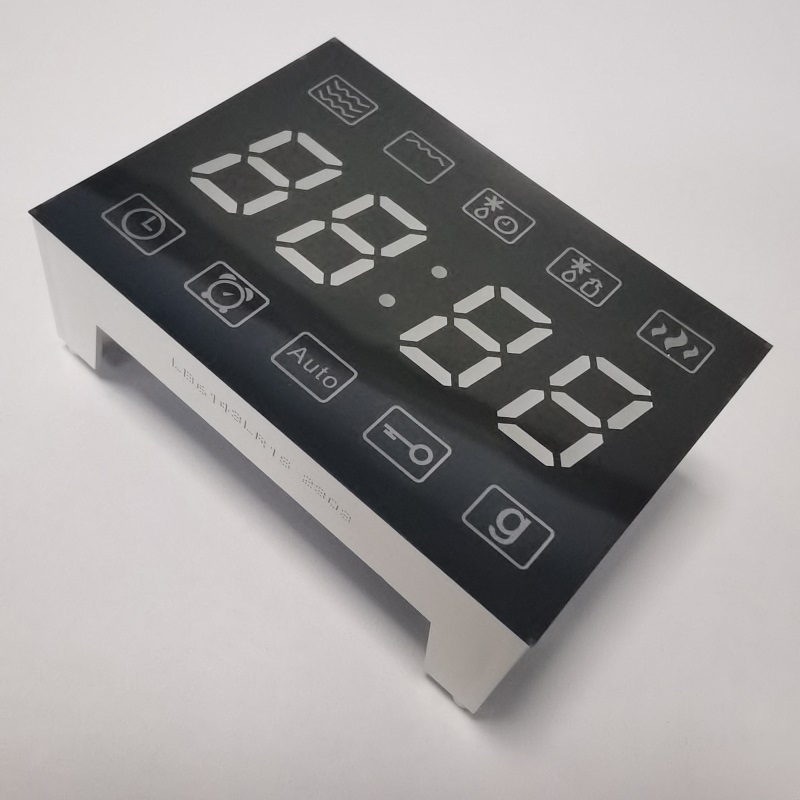

Ultra Red 7 Segment LED Display 4 Digit Common Cathode for Microwave Control
High-performance 7-segment LED display designed for microwave control applications and industrial instrumentation.
Key Features
- High luminous intensity
- Low power consumption
- Stable performance
- Good consistency
- Wide viewing angle
- Long lifetime
- IC compatible
- Withstands environment temperature +105°C to +120°C
- RoHS/REACH Compliant
- Available in multiple colors: red, blue, green, white, amber, orange

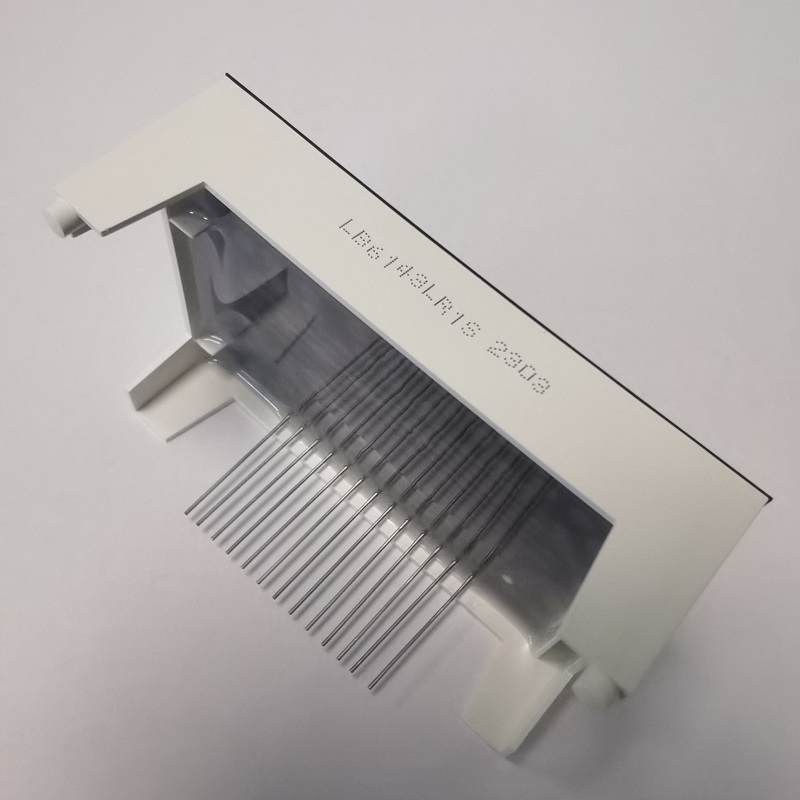

Physical Specifications
| Package dimensions |
61*43*20mm |
| Character Height |
0.49 inch |
| Face Colour |
Black |
| Polarity |
Common Cathode |
| Emitting Colour |
Ultra bright red |
| Operating Temperature |
Max. +105°C to +120°C |
| Pin type |
SMD |
Applications
- Audio equipment and instrument panels
- Digital indicators
- Multimedia products
- Bank exchange rate displays
- LED clock displays
- Gas station displays
- Various equipment and machine display areas
Technical Parameters by Color Code
Yellow Green - J/JU
Vibrant yellow-green display option offering excellent visibility and aesthetic appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 30 | | 40 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 569 | | 574 | nm |
Amber/Yellow - Y
Warm amber/yellow hue providing excellent visibility with a comfortable glow.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.5 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 585 | | 595 | nm |
Orange - F
Energetic orange color offering high visibility and visual impact.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.4 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 60 | | 80 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 600 | | 605 | nm |
Super Bright Red - R
High-intensity red display for maximum visibility and impact.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 50 | | 60 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 630 | | 635 | nm |
Ultra Bright Red - UR
Maximum brightness red display with unparalleled visibility.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 1.8 | | 2.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 80 | | 100 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 625 | | 635 | nm |
Pure Green
Crisp green display ideal for eco-friendly designs and applications.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.6 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 180 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 515 | | 525 | nm |
Ultra Bright Blue - BH
Modern blue display with cool, refreshing aesthetic appeal.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| Spectrum Width Of Half Value | △λ | If=10mA | | 20 | | nm |
| Wavelength | Dλ | If=10mA | 460 | | 465 | nm |
Ultra Bright White - WH
Pristine white display offering exceptional clarity and elegance.
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
|---|
| Forward Voltage | Vf | If=10mA | 2.8 | | 3.2 | V |
| Reverse Voltage | Vr | Ir=10uA | 5 | | | V |
| Luminous Intensity | Iv | If=10mA | 120 | | 140 | mcd |
| LED Color Temperature | K | If=10mA | 5500 | 20 | 6800 | K |
| Chromaticity Coordinates | X/Y | If=10mA | 0.29,0.32 | | 0.30,0.33 | nm |
Absolute Maximum Ratings (Ta=25°C)
Performance specifications ensuring reliability under demanding conditions.
| Parameter | Symbol | Ratings | Unit |
|---|
| Forward Current (per dice) | Ipm | 20 | mA |
| Reverse Voltage (per dice) | Vr | 5 | V |
| Power Dissipation (per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40 to +85 | °C |
| Storage Temperature Range | Tstg | -40 to +85 | °C |
| Solder Temperature (≤3 seconds) | Th | 260 | °C |
